Basic Boat Info
Dimensions
Engines / Speed
- Make: MTU
- Model: 12v 4000
- Fuel: Diesel
- Engine Hours: 3750
- Engine Location: Port
- Make: MTU
- Model: 12v 4000
- Fuel: Diesel
- Engine Hours: 3750
- Engine Location: Starboard
2016
Full paint job top to bottom
Garage teak replaced
New generators Kohler 99kW PORT/STBD
AC sea converter installed 99kW
2021
All AV/IT redone with Crestron and Sonos new smart TVs new Direct TV boxes
All hydraulic lines replaced
Gantry crane in garage fully serviced with new lines
New BA tender with 115 Yamaha outboard
All safety systems up to date (fire suppression systems etc..)
Anchor windlass fully serviced
New carpets
Full polish top to bottom
Full bottom back to base
Main Engines
Engine Type: x2 MTU 12v 4000 (5260001955) NGO
Engine Hours: 3,750 hrs
Gearboxes for Main Engines: BEHR NR 37051
Speed Consumption per Hours
20 (kts) @113gal/hr (fuel consumption) 1800nm (range)
30 (kts) @135gal/hr (fuel consumption) UNKNOWN (range)
Generators & Electricity
Output: 80kW
Generators: 26 EN/KOHLER/MODEL 80 EF0ZOJ
Generator Hours: 3,630 / 4,364
Generator Fuel Consumption: 15 gal/h (75%)
Shore Power: At Sea AC75 Q-3 109 amp 75kVA
Batteries
Main Engine Starting: x2 batteries each engine, 24v
Generator Starting: x2 batteries each generator, 24v
Emergency: x2 batteries, 24v
Air Conditioning
Type: Chillers - x3 compressors Frigil / x1 compressor Dometic
Other Machinery
Watermakers: 375L/hr ; 9,000L daily
Stabilizers: Rodriguez Marine System
Bow Thruster: RMS 50kW Rodriguez Marine System
Fuel Separator & Filtration: Alfa Laval Purifon MMPX404 S6P-11
Sewage System: Hamann N5667 (24 m3/d)
Fresh Water System: x2 jet pumps
Bilge Water Filtration: Oil water separator RWO skti/s = 0.25
Waste Oil Capacity: 0.44 m3/440L 116gal
Communication Systems
SATcom: Sea Tel
VSat: Sea Tel
VHF: ICOM M424G / M605
Navigation Systems
Radar: Furuno + Nav Net3
GMDSS VHF Radios: x2 ACR SR 203
SART: x1 Mcmurdo AIA SART S5A
EPIRB: x2 ACR RLB-41 / RLB-37
Gyro Compass: C. Plath
Autopilot: C. Plath Navi pilot V HSC
Echo Sounder: Furuno FCV-628 / FCV-588
GPS: Furuno GP-150
Ships Computer: Baglietto Marine System
Wind/Speed Log: Furuno FI-50
AIS: Furuno Class B Transponder FA-50
Control Systems

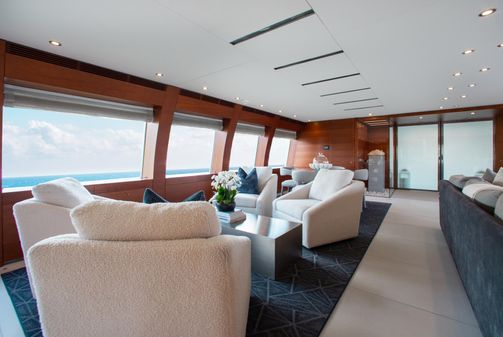

Main Salon: Crestron
Main Aft Deck: Crestron

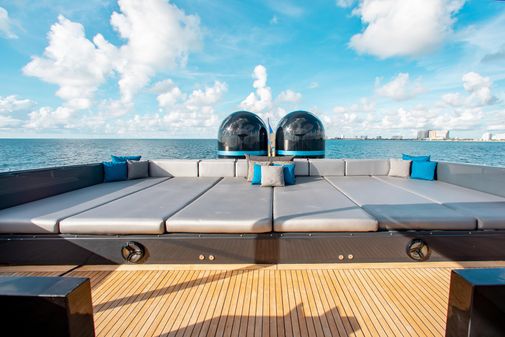

Sundeck: Crestron
Master Stateroom: Crestron
VIP Stateroom #1 & #2: Direct TV
Guest Stateroom Twin: Direct TV
Audio Equipment: Crestron
Main Galley Equipment
Cooking Equipment: Miele / Gaggenau
Refrigeration/Freezer: Frigit
Dishwasher: Miele
Crew Galley/Mess Equipment
Cooking Equipment: Microwave / Alaska
Additional Galley Equipment
Cooking Equipment: Gaggenau
Refrigeration/Freezer: Frigit
Laundry Equipment
Main Laundry Equipment: x2 Miele washer, x2 Miele dryer
x1 AB Inflatable 17' Fiberglass, Outboard 115HP
Anchor Windlass: x2
Aft Warping Capstans: x2
Anchors: x2
Anchor Chain: x2 STBD/PORT
Passerelle: x2
Swimming Platform: x2 STBD/PORT
Security Equipment
Cameras: x3
Monitors: x1 Control monitor (Samsung 31")
Fire Fighting Equipment
-Co2 fire extinguisher
-EBD smoke detector
-Fire pumps
-Hydrants & hoses
-Closing of ventilation ducts
-Remote stop of ER vent
Safety Equipment
-Life jackets
-Smoke signals
-Hand flares
-Parachute rockets
-Line thrower
-Lifebuoy with lines
-x2 life rafts
-Emergency kit
-Portable oxygen bottle
-Portable defibrillator
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
